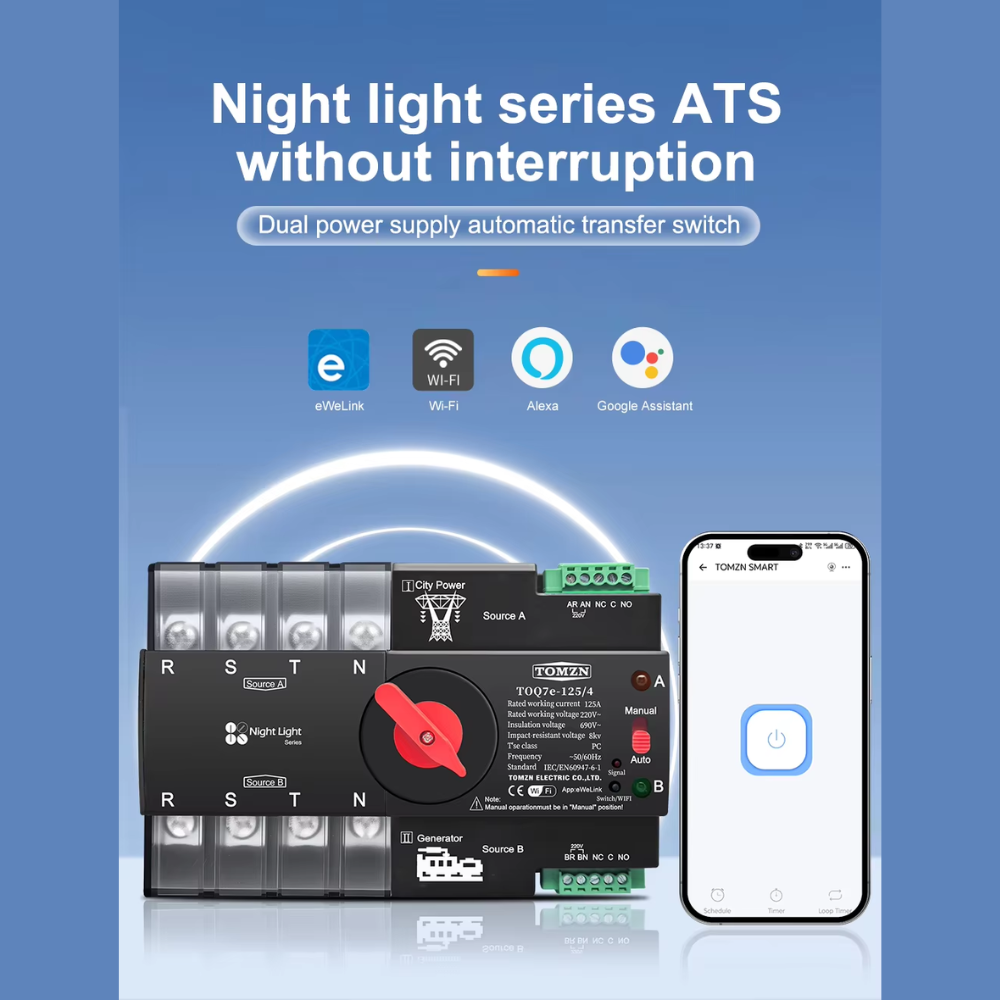

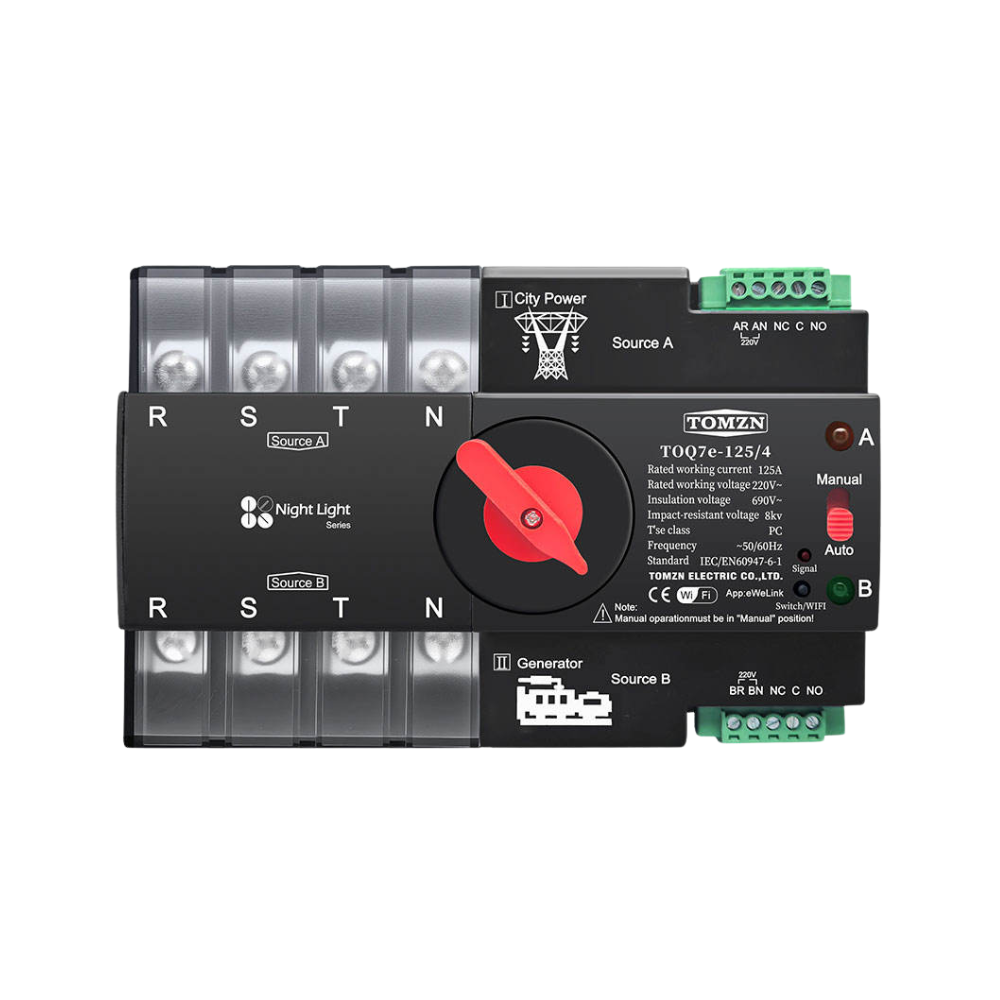

Never Stay in the Dark — TOMZN Smart Changeover ATS Switch | 4P Three Phase
Anyone running a home, an office, or a business on three-phase power in Pakistan knows the specific frustration of what happens when WAPDA cuts out mid-operation. A video call drops. A transaction fails. A production machine loses its progress. Even with a solid backup system — a solar inverter or a standby diesel generator — there is always that disruptive gap while someone runs to flip a heavy manual changeover lever, or while a slow relay clicks over. Desktop computers shut down. WiFi routers reboot. Unsaved work vanishes.
The TOMZN Smart Changeover ATS Switch 4P , available at SmartSwitch.pk, eliminates that gap entirely. This heavy-duty four-pole Automatic Transfer Switch continuously monitors your primary and backup power lines and transfers your entire three-phase electrical load between them in under 8 milliseconds — automatically, silently, and without any human intervention. You stay working. Your appliances stay running. Your business stays online.
Browse our Smart Circuit Breakers category to see how the TOMZN Smart Changeover ATS Switch 4P Three Phase fits into a complete power management setup for your home or business.
The Engineering Behind Under-8ms Switching
The standout specification of the TOMZN Smart Changeover ATS Switch 4P Three Phase is its reaction speed. As Eaton explains in their ATS fundamentals guide, an automatic transfer switch is a self-acting, intelligent power switching device that continuously monitors electrical parameters — voltage and frequency — on the primary source and initiates a transfer the instant those parameters fall out of acceptable range. The quality of the switching mechanism determines how quickly that transfer happens and whether sensitive equipment notices the interruption.
The TOMZN 4P Three Phase transfers in under 8 milliseconds. A single human blink takes between 100 and 400 milliseconds — making this switch between 12 and 50 times faster than the blink of an eye. At this speed:
- Inverter air conditioners do not detect a supply interruption and continue running without tripping
- Desktop computers and workstations stay powered without a shutdown or restart cycle
- WiFi routers and network switches stay online without dropping connected devices
- Security cameras continue recording without a single gap in footage
- Smart home devices and automation controllers do not lose their programmed state
For any Pakistani home or office that has experienced the cascading nuisance of resetting every networked device after a load-shedding event — this switching speed is the single most meaningful upgrade available at the distribution board level.
Why 4P Three Phase Matters — The Neutral Switching Advantage
Many cheaper three-phase changeover switches sold in Pakistan are actually 3P units — they switch only the three live phase conductors (L1, L2, L3) but leave the neutral wire permanently connected to one source. This creates a known and genuinely dangerous condition called a floating neutral fault when the two neutral paths from the grid and generator are momentarily mismatched. Floating neutral causes unequal voltage distribution across phases, which can destroy sensitive appliances, corrupt data on running computers, and in severe cases create fire risk inside the distribution board cabinet.
The TOMZN Smart Changeover ATS Switch 4P Three Phase switches all three phases and the neutral wire simultaneously — providing complete, clean electrical isolation between your grid supply and your backup source at every transfer event. As Schneider Electric’s transfer switch guide explains, transferring the neutral is particularly important in systems where the two power sources have separate neutral references — exactly the situation when switching between a WAPDA grid connection and an independent generator or solar inverter system.
This 4P architecture also includes a built-in mechanical interlock that physically prevents both power sources from being bridged simultaneously under any condition — eliminating the risk of dangerous backfeed into the street transformer or your generator.
4P vs 3P — why it matters in simple terms:
| Feature | 3P Switch | 4P Switch (This Product) |
|---|---|---|
| Phases switched | L1, L2, L3 only | L1, L2, L3 + Neutral |
| Electrical isolation | Partial | Complete |
| Floating neutral risk | Yes | Eliminated |
| Correct for generator/solar | No | Yes |
Built for Pakistan’s Heavy-Load Three-Phase Environments
A common failure point in cheap changeover switches is their inability to handle the high inrush currents drawn simultaneously by multiple large appliances at the moment of transfer. The TOMZN Smart Changeover ATS Switch 4P Three Phase is rated at 125A capacity across a full three-phase 4P configuration — substantial enough for:
- Large homes and villas running multiple 1.5-ton to 2-ton inverter ACs, deep freezers, water pumps, and a full smart home setup simultaneously
- Commercial offices powering full floors of workstations, servers, CCTV systems, and central air conditioning on three-phase supply
- Clinics and diagnostic centres where medical equipment, lighting, and billing systems cannot tolerate even a brief supply interruption during patient-facing operations
- E-commerce warehouses and production floors where automated machinery and order processing systems require continuous three-phase power through every load-shedding window

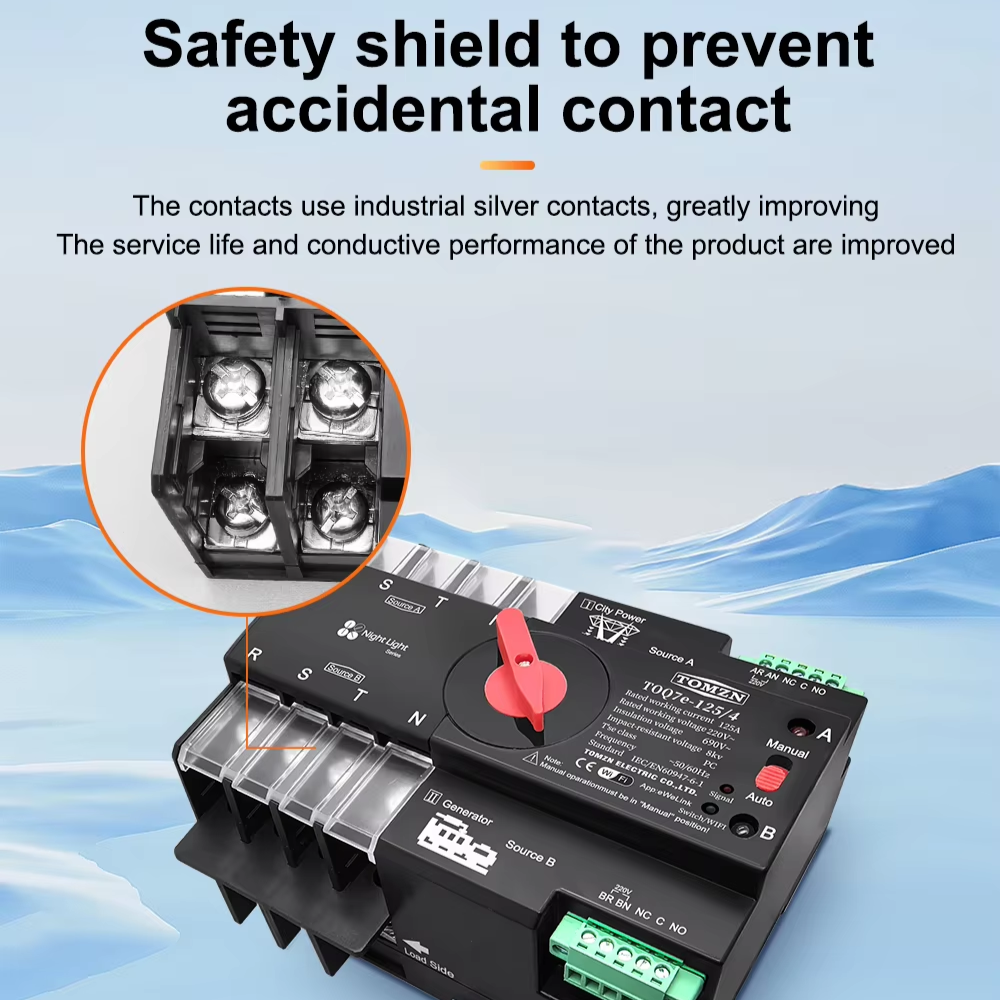

The internal contacts are silver-alloy construction — chosen for high conductivity, low contact resistance, and resistance to arcing under repeated high-current switching cycles. The outer casing is flame-retardant rated, protecting your distribution board cabinet in the unlikely event of an internal fault. These are not components that degrade after a few hundred cycles — they are built for years of daily operation under full Pakistani household and commercial loads.
How the Dual-Power Transfer Sequence Works
The TOMZN Smart Changeover ATS Switch 4P Three Phase operates on a simple, reliable priority logic:
On grid power failure: The ATS detects voltage loss on the primary (WAPDA) terminals and immediately snaps the mechanical contacts to the secondary (generator or solar inverter) terminals in under 8ms. Your backup source takes your full three-phase load without interruption.
On grid power restoration: When primary supply returns and holds stable voltage across all three phases for a verification period, the ATS automatically transfers the load back to the grid and allows your generator to idle down safely — or your solar batteries to stop discharging and return to charging mode.

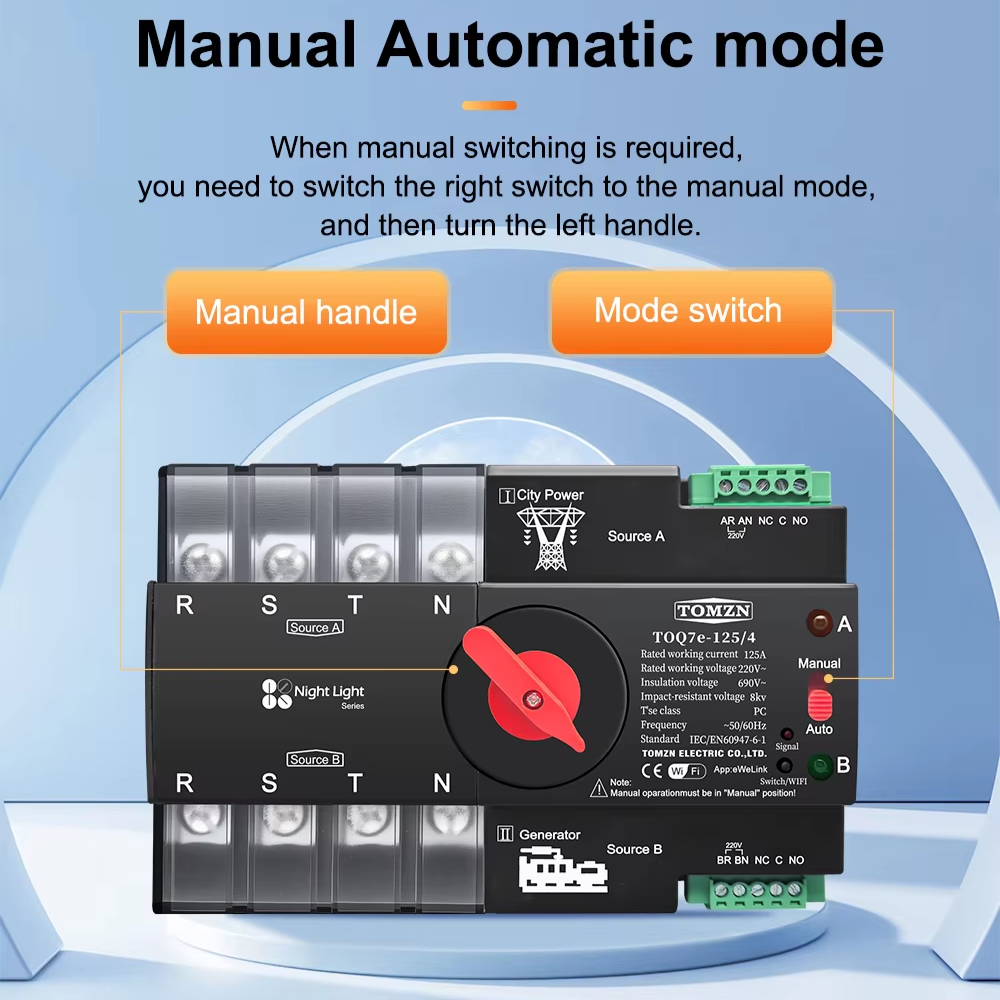

In Manual mode: A clearly marked physical toggle on the front panel lets you force a transfer manually — for scheduled generator testing, maintenance periods, or solar performance monitoring without waiting for an actual outage.
The entire operation requires no smartphone, no app, no WiFi, and no internet connection — making it completely independent of broadband infrastructure. It operates identically whether your router is online or offline, through every load-shedding event, around the clock.
Pair It With SmartSwitch.pk’s Smart Breaker Range
The TOMZN Smart Changeover ATS Switch 4P Three Phase handles dual-source switching at the distribution board entry point for your three-phase supply. For per-circuit app-based protection and monitoring on your solar and DC battery circuits, pair it with our WiFi 63A DC Smart Breaker — managing your solar storage circuits with remote monitoring while the ATS handles the grid/backup source switching automatically above it.
For individual circuit-level control and scheduling on specific loads — AC units, motors, water pumps — explore our DC Smart Circuit Breaker range and WiFi Smart Switches for building a fully managed distribution setup around the TOMZN ATS at its core.
For heavy single-load appliances like geysers and water motors already managed through a smart switch, our 40A Smart Switch for Geyser & Motor remains live and responsive through every load-shedding event once the TOMZN ATS is handling your source switching at the board level.
TOMZN 4P Three Phase vs TOMZN 2P Single Phase — Which Do You Need?
If you are evaluating both TOMZN ATS options available at SmartSwitch.pk, here is the critical distinction:
The TOMZN Smart Changeover ATS Switch 2P Single Phase is a single-phase (2P) WiFi-connected ATS using the eWeLink app — the right choice for residential properties on single-phase supply that also want smartphone monitoring, remote overrides, and generator scheduling through an app.
The TOMZN Smart Changeover ATS Switch 4P Three Phase (125A) is a three-phase (4P) fully mechanical, non-WiFi ATS — the right choice for larger homes, villas, offices, clinics, and commercial spaces on three-phase supply that need maximum load capacity, true neutral switching, and hardware reliability completely independent of any app or internet connection.
Choose based on your property’s phase configuration first — single phase or three phase — and then on whether remote app control is a requirement.
Who Needs This at SmartSwitch.pk
Large homes and multi-story villas — three-phase supply, multiple heavy ACs, and a solar or generator backup system that cannot afford even a 5-second manual changeover delay during load-shedding.
Commercial offices and business owners — servers, workstations, and POS systems that lose data or drop client connections the moment power shifts; the 8ms transfer prevents every one of those events.
Clinics, labs, and diagnostic centres — medical equipment and patient data systems that require uninterrupted three-phase power during procedures and cannot tolerate any manual transfer window.
E-commerce and production facilities — automated order management platforms and production machinery that must stay live through every load-shedding event during business hours.
Solar hybrid property owners — complete three-phase source switching between solar inverter output and WAPDA grid power, managed automatically without manual intervention and without any app dependency.
Order From SmartSwitch.pk
Every order at SmartSwitch.pk ships with a 30-day warranty, free shipping on orders above ₨2,000, and a 7% discount when paying by bank transfer or prepaid. Message us on WhatsApp from the product page for fast order confirmation and nationwide delivery across Pakistan.
The TOMZN Smart Changeover ATS Switch 4P Three Phase is a foundational investment in your property’s three-phase power infrastructure — replacing the daily nuisance of manual changeovers with invisible, instantaneous, reliable automatic protection that keeps your home and business running through every load-shedding event.
